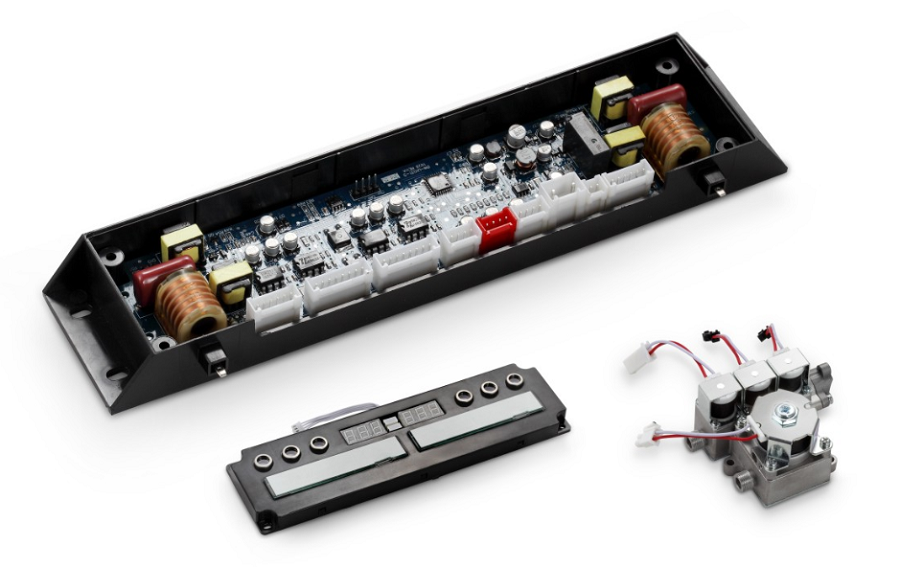

LK082/LX015
咨询热线:0757-28378668
功能简述Function description

电源采用外接适配器设计,集点火、控制一体

Power supply is designed with external adapter, it combines sparking and control functions together

显示操作器四线通信接口

Display operator with four-line connector

适用于液化气、天然气、

Several models of gas are applicable including LPG, and NG

传感器信号、阀体检测信号

Sensor signal and valve detection signal

双路交流离子火焰检测输入

Two-channel AC ion flame detection input

串行WIFI通信接口

Serial WIFI communication connector


定时关机、故障功能声光报警; (以数码显示、指示灯、蜂鸣器实现报警提示)

Failure warning function can be realized via sound-light alarm (Failure warning consists of display,indicator light, and buzzer)

串行烟灶联动通信接口

Serial kitchen ventilator communication interface

多路控制信号检测输入:炉底检测信号、锅底传感器信号、防火温度

Multi-channel control signal detection input including burner bottom detection signal, pan bottom sensor signal and fireproof temperature signal

电容触摸式按键输入

Capacitive touch buttons


多级可滑动式或触点式调节火力大小

Slideable or touch spot to adjust the wind strength


    主要技术参数    MAIN TECHNICAL PARAMETER

额定工作电压:AC 220V

Normal working voltage : AC 220V

驱动三组(外环火、中心火) DC24V开关阀输出

Activate output of three groups of DC24V valve

比例阀:DC24V

Proportional valve:DC24V

传感器:(可根据客户需求调整)

According customer requirement,sensor can be added for this design

工作电压范围: AC 90V-264V

Working voltage range : AC 90V~264V

驱动两路对地点火高压输出

Activate HV output of two-channel sparking to ground

电磁阀:DC24V

Solenoid valve:DC24V

驱动一个DC24V比例阀输出

Active a DC24V proportional valve output

输出高压( 30P ) : ≥12kV ,放电脉冲宽度≥12us,放电频率8-18Hz,放电距离≥6mm

HV Output (30P) : ≥12kV, sparking pulse width≥ 12us,sparking rate 8-18Hz,Sparking gap≥ 6mm
